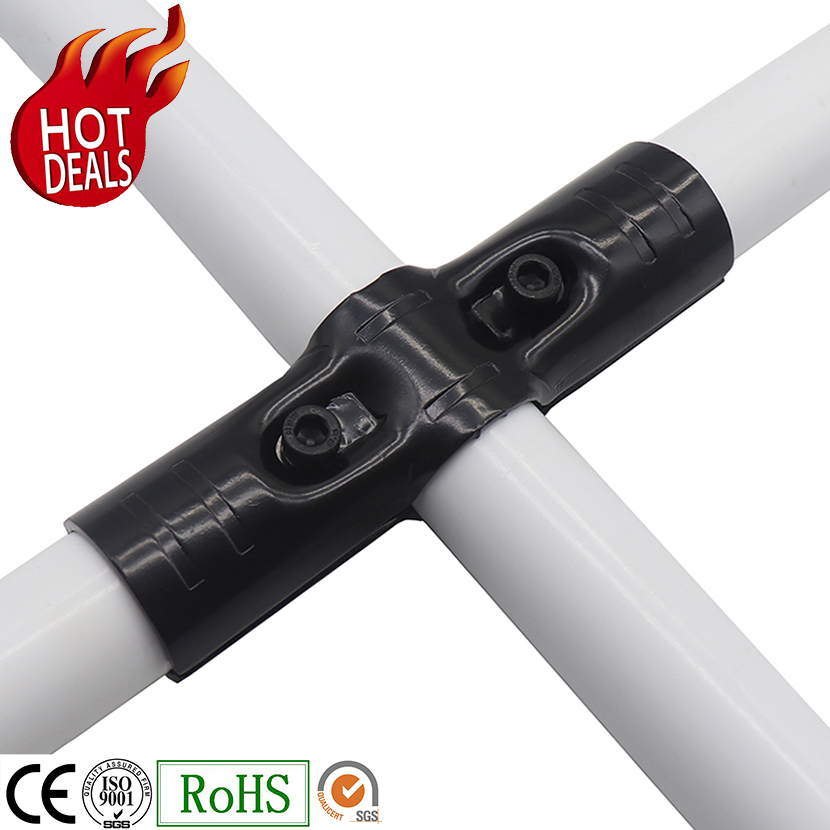

YS-4 SPHC 3 Way Cross Joint

20220518141256 89113
YS-4 SPHC 3 Way Cross Joint | Black Electrophoresis Lean Pipe Connector | Yusilean
Request Quote

_01

WHAT THE SPECIFICATION OF PRODUCT?

Model# YS-3
Product name: Black Steel Lean pipe connector
Connection 4 Way Cross Joint Set
Material: Hot rolled steel (SPHC)
Compatible pipe systems Compatible with 28 mm pipes
Thickness: 2.3 or 2.5mm(Full size)
surface treatment: Black electrophoresis, blue zinc, nickel plated, chromeplate
Manufacturing technique Stamping molding - grind deburring - Product electrophoresis - packaging
Metal clamp application: Widely used forworkbench(fixed or mobile), workstations, turnover vehicles, rack, storage shelves, display stand and Lean lines, production lines, LCIA system, lean manufacturing line, trolley, storage, auto system
RoHS certification Yes
Recyclable Yes
None compatible pipe systems Trilogiq (28.6 mm)
Frequency of use Very high
Reusable Yes
Reusable parts All
Electric conductivity (ESD) No
Steel hardness (HRB) 68-75 HRB
Finish Glossy
UV resistance High
System operational temperature -148°F to 572°F (-100°C to 300°C)
Steel treatment Black cathodic electrodeposition (Ecoating)
Manufacturing technique Stamping and deburring



More Products

Ha392b1b72fab4a94bd84633e37f24336d H0e341951b94a4467a346070a729a7569p


Related Products

_06

Company Information

_07_08

What to Know Before You Order

YS-4 SPHC 3 Way Cross Joint belongs to the family of cast and pressed fittings that hold a 28 mm tube frame together. Individually it is a small casting with one bolt; collectively these parts decide whether a workstation behaves as one rigid structure or as a set of tubes leaning against each other.

Points that decide whether it works

  • Confirm the pipe you are joining: 28 mm OD is the standard, but wall thickness changes how much clamping travel the joint has. Thin-wall and thick-wall tube are not always interchangeable in the same fitting.
  • Where the frame will be rebuilt, check that the joint is rated for multiple assembly cycles. Clamping force that fades after the second build turns a modular system into a consumable one.
  • Joint halves are tightened to clamp, not to pin. The structure holds because friction between the coating and the casting exceeds the load trying to rotate the tube — which makes bolt torque a structural specification, not a preference.
  • Mark each joint with a paint pen once torqued. A broken line means something moved, and it is visible from across the aisle without touching the frame.
  • Specified torque for an M6 bolt in this family is typically 8 to 10 Nm. Two fitters working by feel will differ by up to a factor of two, and the frame that holds its rating is the one assembled with a wrench rather than a hex key and good intentions.

Frequently Asked Questions

Can it be reused after dismantling?

Mechanically yes, but clamping force depends on the coating recovering its thickness. After two or three assemblies the joint needs more torque to hold the same load, so treat reuse as a maintenance decision rather than a free option.

What torque should I use?

Typically 8 to 10 Nm for an M6 bolt in this family, then again after 24 to 48 hours once the coating has settled. Use a wrench, not feel; the difference between two fitters is larger than most people believe.

Do you supply an ESD version?

Yes. The dissipative version is specified where the workstation is grounded, and it needs to be ordered explicitly rather than assumed — mixing standard and dissipative joints in one frame breaks the path.
