- Standard 28mm outer diameter with 0.8/1.0/1.2mm wall thickness options
- Premium PE coating available in black, grey, beige, blue, green, yellow
- Compatible with all industry-standard 28mm metal joints and connectors
- Reusable and reconfigurable design reduces long-term operational costs

WHAT THE SPECIFICATION OF PRODUCT?
| Product name | Steel pipe PE coated |
| Brand | Yusi |
| Model | YS-4000 |
| Length | 4m/piece (Can be customized) |
| Thickness (mm) | 0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm |
| Outer diameter (mm) | 27.8 ± 0.2mm |
| Whether alloy | Non-alloy |
| Surface treatment | PE / 5000S / ABS Coating |
| Material | SPCC Steel |
| Application | Production line, workbench, production workshop |
| colour | Beige, white, ivory, black, blue, apricot, green, red, yellow, gray, orange or customized color |
| Technology | ERW (Straight Seam Resistance Welded Pipe) |
| Section shape | Round |
| Can it be reused | Yes |
| Welding process | High frequency welding |
| Special Pipe | API Pipe |
| System operational temperature | -40°F to 122°F (-40°C to 50°C) |
| Packing | 10 pieces/bundle (package) |
| Place of Origin |
Dongguan, China |


What to Know Before You Order

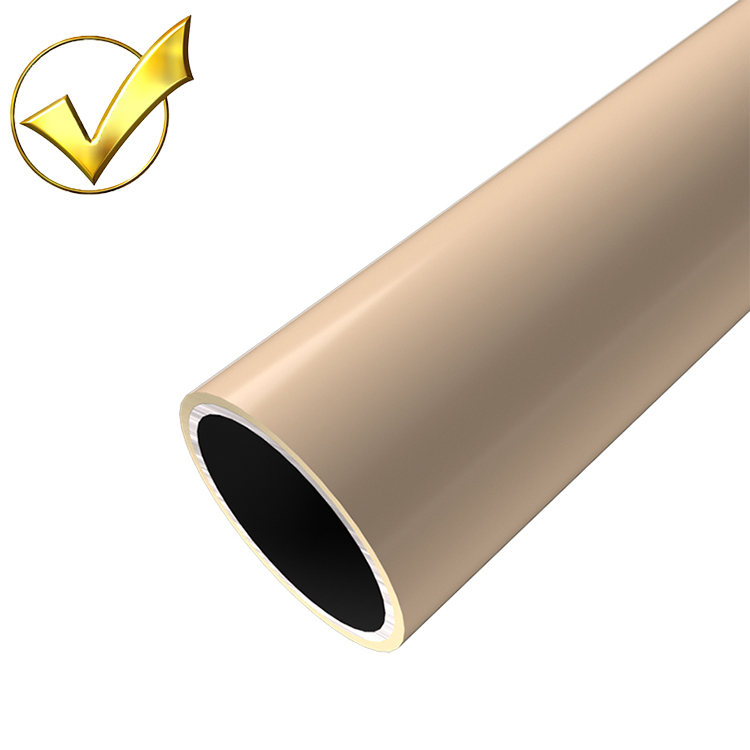

28mm Beige ABS Coated Steel Lean Pipe is the structural element of a modular tube system — 28 mm outside diameter, coated steel core, cut and joined on site with hand tools. What it is asked to do is carry load across a span, and that is where most specification mistakes are made.
Allowable load falls sharply with span: our 28 mm lean pipe load rating tables give the figures for each wall thickness and span, with the deflection limit and safety factor stated so the arithmetic can be checked.
Points that decide whether it works
- Cut tube square and deburr before assembly. An out-of-square cut loads the joint unevenly and shows up later as a frame that will not sit flat.
- Ask for the mill certificate when the tube is going into a structural application. Wall thickness tolerance varies between suppliers and it is the figure that governs everything else.
- Chrome-plated and plain steel pipe exist for different reasons: plated for appearance and light corrosion resistance, plain for painting or where weld-in fittings are used.
- Halving the unsupported span roughly triples what a shelf carries, using one extra length of tube and two joints. It is almost always cheaper than upgrading to thicker wall tube for the same result.
- Published load figures assume the weight is spread across the whole shelf. A fixture or a gearbox sitting in one spot bends the panel several times harder at the same total weight.
Frequently Asked Questions
How much weight can 28 mm lean pipe hold?
It depends on span. As a working guide, 0.8 mm wall tube spanning 1200 mm carries around 34 kg under an L/200 deflection limit, while the same tube at 600 mm carries about 96 kg. Our load rating tables give the full matrix by wall thickness and span.
Which wall thickness should I choose?
Choose by span first, then by load. If the unsupported distance is over a metre, adding a support usually beats buying thicker tube — the cost is lower and the stiffness gain is larger.
Is the coating available in ESD?
Yes, with surface resistivity in the 10^6 to 10^9 ohm range. Specify it at enquiry stage; retrofitting means replacing tube rather than adding an accessory.
