- Standard 28mm outer diameter with 0.8/1.0/1.2mm wall thickness options
- Premium PE coating available in black, grey, beige, blue, green, yellow
- Compatible with all industry-standard 28mm metal joints and connectors
- Reusable and reconfigurable design reduces long-term operational costs
WHAT THE SPECIFICATION OF PRODUCT?

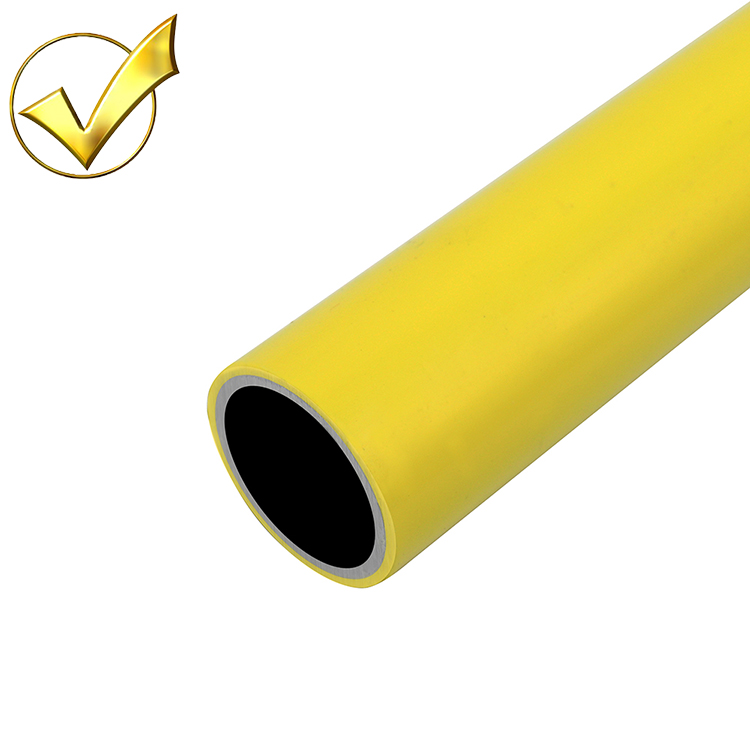

| Product name | Steel pipe PE coated |
| Brand | Yusi |
| Model | YS-4000 |
| Length | 4m/piece (Can be customized) |
| Thickness (mm) | 0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm |
| Outer diameter (mm) | 27.8 ± 0.2mm |
| Whether alloy | Non-alloy |
| Surface treatment | PE / 5000S / ABS Coating |
| Material | SPCC Steel |
| Application | Production line, workbench, production workshop |
| colour | Beige, white, ivory, black, blue, apricot, green, red, yellow, gray, orange or customized color |
| Technology | ERW (Straight Seam Resistance Welded Pipe) |
| Section shape | Round |
| Can it be reused | Yes |
| Welding process | High frequency welding |
| Special Pipe | API Pipe |
| System operational temperature | -40°F to 122°F (-40°C to 50°C) |
| Packing | 10 pieces/bundle (package) |
| Place of Origin |
Dongguan, China |
What to Know Before You Order
28mm PE Coated Steel Lean Pipe is the structural element of a modular tube system — 28 mm outside diameter, coated steel core, cut and joined on site with hand tools. What it is asked to do is carry load across a span, and that is where most specification mistakes are made.
Allowable load falls sharply with span: our 28 mm lean pipe load rating tables give the figures for each wall thickness and span, with the deflection limit and safety factor stated so the arithmetic can be checked.
Points that decide whether it works
- The coating is a wear part. PE and ABS both scuff, and neither survives being dragged across concrete. Cut ends should be capped or deburred so the steel core does not rust from the inside.
- Cut tube square and deburr before assembly. An out-of-square cut loads the joint unevenly and shows up later as a frame that will not sit flat.
- For electronics work, specify dissipative coating with surface resistivity in the 10^6 to 10^9 ohm range, and confirm the joints, casters and worktop belong to the same grounded path.
- Published load figures assume the weight is spread across the whole shelf. A fixture or a gearbox sitting in one spot bends the panel several times harder at the same total weight.
- Ask for the mill certificate when the tube is going into a structural application. Wall thickness tolerance varies between suppliers and it is the figure that governs everything else.
Frequently Asked Questions
How much weight can 28 mm lean pipe hold?
It depends on span. As a working guide, 0.8 mm wall tube spanning 1200 mm carries around 34 kg under an L/200 deflection limit, while the same tube at 600 mm carries about 96 kg. Our load rating tables give the full matrix by wall thickness and span.
Can you cut to length?
Yes, and cut-to-length delivery removes the squareness risk that comes with site cutting. If you cut on site, use a fine-tooth blade and deburr both ends before assembly.
Which wall thickness should I choose?
Choose by span first, then by load. If the unsupported distance is over a metre, adding a support usually beats buying thicker tube — the cost is lower and the stiffness gain is larger.
