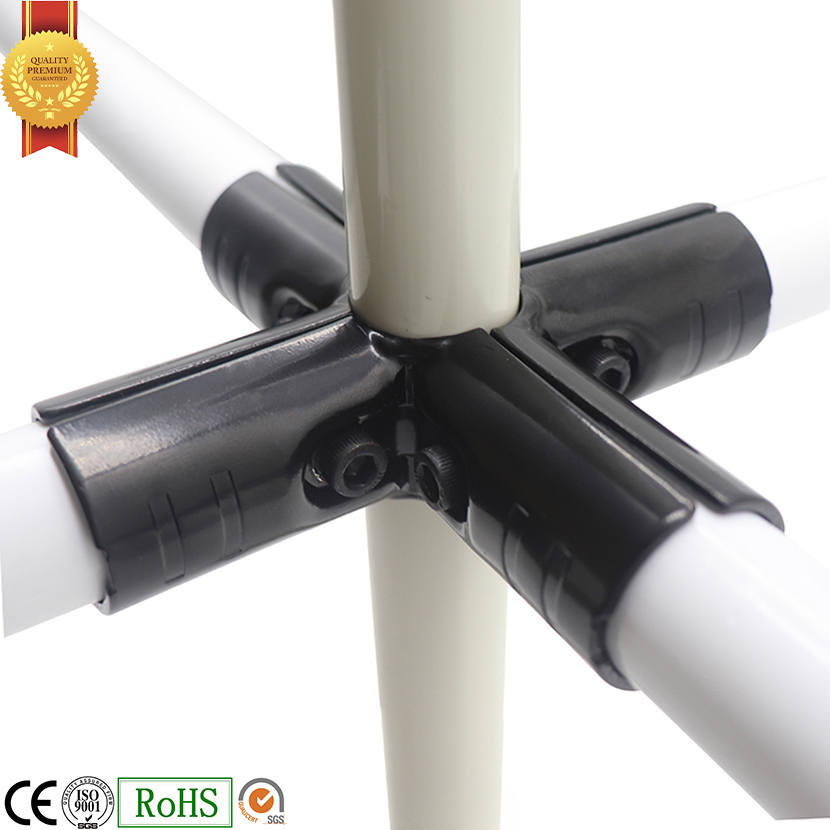

YS-5 5 Way Cross Joint

20220518141404 38820
YS-5 5 Way Cross Joint | Reinforced Lean Pipe Connector | Yusilean
Request Quote

_01

WHAT THE SPECIFICATION OF PRODUCT?



Model# YS-3
Product name: Black Steel Lean pipe connector
Connection 4 Way Cross Joint Set
Material: Hot rolled steel (SPHC)
Compatible pipe systems Compatible with 28 mm pipes
Thickness: 2.3 or 2.5mm(Full size)
surface treatment: Black electrophoresis, blue zinc, nickel plated, chromeplate
Manufacturing technique Stamping molding - grind deburring - Product electrophoresis - packaging
Metal clamp application: Widely used forworkbench(fixed or mobile), workstations, turnover vehicles, rack, storage shelves, display stand and Lean lines, production lines, LCIA system, lean manufacturing line, trolley, storage, auto system
RoHS certification Yes
Recyclable Yes
None compatible pipe systems Trilogiq (28.6 mm)
Frequency of use Very high
Reusable Yes
Reusable parts All
Electric conductivity (ESD) No
Steel hardness (HRB) 68-75 HRB
Finish Glossy
UV resistance High
System operational temperature -148°F to 572°F (-100°C to 300°C)
Steel treatment Black cathodic electrodeposition (Ecoating)
Manufacturing technique Stamping and deburring




More Products

Ha392b1b72fab4a94bd84633e37f24336d H0e341951b94a4467a346070a729a7569p


Related Products

_06

Company Information

_07_08

What to Know Before You Order

YS-5 5 Way Cross Joint belongs to the family of cast and pressed fittings that hold a 28 mm tube frame together. Individually it is a small casting with one bolt; collectively these parts decide whether a workstation behaves as one rigid structure or as a set of tubes leaning against each other.

Points that decide whether it works

  • Mark each joint with a paint pen once torqued. A broken line means something moved, and it is visible from across the aisle without touching the frame.
  • Joint halves are tightened to clamp, not to pin. The structure holds because friction between the coating and the casting exceeds the load trying to rotate the tube — which makes bolt torque a structural specification, not a preference.
  • Retorque 24 to 48 hours after assembly. PE and ABS coatings creep under sustained clamping pressure, so a joint set correctly on Monday is measurably looser in three weeks. This is the single most skipped step in every installation.
  • Confirm the pipe you are joining: 28 mm OD is the standard, but wall thickness changes how much clamping travel the joint has. Thin-wall and thick-wall tube are not always interchangeable in the same fitting.
  • Ask for the ESD version explicitly if the cell is grounded. A standard painted joint sitting in an otherwise dissipative workstation interrupts the path at the most inconvenient place.

Frequently Asked Questions

What torque should I use?

Typically 8 to 10 Nm for an M6 bolt in this family, then again after 24 to 48 hours once the coating has settled. Use a wrench, not feel; the difference between two fitters is larger than most people believe.

How much load can this joint carry?

The joint is rarely the first thing to fail — the tube span usually gives way first, by sagging rather than breaking. What limits a frame is joint stiffness under sideways load, which is why torque and retorquing matter more than the catalogue weight figure.

Do you supply an ESD version?

Yes. The dissipative version is specified where the workstation is grounded, and it needs to be ordered explicitly rather than assumed — mixing standard and dissipative joints in one frame breaks the path.
